OpenELEC – Logitech Harmony Touch mit Kodi / XBMC – Keymaps

Ho ho ho, zu Weihnachten habe ich von meinen Eltern eine Logitech Harmony Touch bekommen. Bisher hatte ich immer eine Logitech Harmony 650, jedenfalls im Wohnzimmer, im Einsatz.

Viele interessiert wahrscheinlich die Haltbarkeit des Akkus. Bei mir hält die Harmony Touch, bei normaler Nutzung, ca. 5-7 Tage.

Harmony-Geräte-Profil – „Microsoft Windows Media Center SE“

Wie immer bei XBMC bzw. Kodi nutze ich als Harmony-Geräte-Profil „Microsoft Windows Media Center SE„. Schon immer, bei diesem Profil, ist die Taste „Menü“ und der „Zurückpfeil“ nicht belegt, diese Belege ich mit …

… „Media“, die Taste „Menü“.
… „Back“, den „Zurückpfeil“.

Kodi / XBMC Keymap – remote.xml / keyboard.xml

Natürlich wollte ich meinen Media-PC mit der Harmony Touch optimal nutzen und gab mich somit mit dem Kodi-Standard-Keymap nicht zufrieden.

Um einen vernünftigen Anfang zu haben, habe ich die Keymap von LSU Jonno aus dem offiziellen Kodi-Forum genutzt und angepasst.

<!--

Logitech Harmony Touch mit Profil "Microsoft Windows Media Center SE"
loggn.de - Nico Hartung
https://www.loggn.de/openelec-logitech-harmony-touch-mit-kodi-xbmc-keymaps/

Default Lircmap.xml: https://github.com/xbmc/xbmc/blob/master/system/Lircmap.xml
Default remote.xml: https://github.com/xbmc/xbmc/blob/master/system/keymaps/remote.xml

Wiki: https://kodi.wiki/view/Keymap
Source: https://forum.kodi.tv/showthread.php?tid=188542

-->

<?xml version="1.0" encoding="UTF-8"?>
<keymap>
  <global>
    <remote>
      <play>Play</play>
      <pause>Pause</pause>
      <stop>Stop</stop>
      <forward>FastForward</forward>
      <reverse>Rewind</reverse>
      <left>Left</left>
      <right>Right</right>
      <up>Up</up>
      <down>Down</down>
      <select>Select</select>
      <enter>FullScreen</enter>
      <pageplus>PageUp</pageplus>
      <pageminus>PageDown</pageminus>
      <back>Back</back>
      <menu>ContextMenu</menu>
      <title>XBMC.ActivateWindowAndFocus(MyPVR, 31,0, 10,0)</title>
      <info>Info</info>
      <skipplus>SkipNext</skipplus>
      <skipminus>SkipPrevious</skipminus>
      <display>FullScreen</display>
      <start>PreviousMenu</start>
      <record>Record</record>
      <volumeplus>VolumeUp</volumeplus>
      <volumeminus>VolumeDown</volumeminus>
      <mute>Mute</mute>
      <power>XBMC.ShutDown()</power>
      <myvideo>XBMC.ActivateWindow(MyVideos)</myvideo>
      <mymusic>XBMC.ActivateWindow(MyMusic)</mymusic>
      <mypictures>XBMC.ActivateWindow(MyPictures)</mypictures>
      <mytv>XBMC.ActivateWindow(MyPVR)</mytv>
      <guide>XBMC.ActivateWindowAndFocus(MyPVR, 31,0, 10,0)</guide>
      <livetv>XBMC.ActivateWindowAndFocus(MyPVR, 32,0, 11,0)</livetv>
      <liveradio>XBMC.ActivateWindowAndFocus(MyPVR, 33,0, 12,0)</liveradio>
      <recordedtv>XBMC.ActivateWindowAndFocus(MyPVR, 34,0, 13,0)</recordedtv>
      <epgsearch>XBMC.ActivateWindowAndFocus(MyPVR, 35,0, 14,0)</epgsearch>
      <red>XBMC.ActivateWindow(MyPVR)</red>
      <green>XBMC.ActivateWindow(MyVideos)</green>
      <yellow>XBMC.ActivateWindow(MyMusic)</yellow>
      <blue>XBMC.ActivateWindow(MyPictures)</blue>
      <zero>Number0</zero>
      <one>Number1</one>
      <two>JumpSMS2</two>
      <three>JumpSMS3</three>
      <four>JumpSMS4</four>
      <five>JumpSMS5</five>
      <six>JumpSMS6</six>
      <seven>JumpSMS7</seven>
      <eight>JumpSMS8</eight>
      <nine>JumpSMS9</nine>
      <!-- NH loggn.de -->
      <myvideo>ActivateWindow(video)</myvideo>
      <mymusic>ActivateWindow(music)</mymusic>
      <mypictures>ActivateWindow(pictures)</mypictures>
      <title>ActivateWindow(tvguide)</title>
      <guide>ActivateWindow(tvguide)</guide>
      <mytv>PlayPvr</mytv>
      <livetv>ActivateWindow(tvchannels)</livetv>
      <liveradio>ActivateWindow(radiochannels)</liveradio>
      <recordedtv>ActivateWindow(tvrecordings)</recordedtv>
      <epgsearch>ActivateWindow(pvrguidesearch)</epgsearch>
      <red>ActivateWindow(tvchannels)</red>
      <green>ActivateWindow(video)</green>
      <yellow>ActivateWindow(music)</yellow>
      <blue>ActivateWindow(pictures)</blue>
      <start>ContextMenu</start>
      <playlist>Playlist</playlist>
      <subtitle>Playlist</subtitle>
      <pageplus>PageDown</pageplus>
      <pageminus>PageUp</pageminus>
    </remote>
  </global>
  <Home>
    <remote>
      <info>XBMC.ActivateWindow(SystemInfo)</info>
      <clear>XBMC.ActivateWindow(Weather)</clear>
      <hash>XBMC.ActivateWindow(Settings)</hash>
    </remote>
  </Home>
  <MyTV>
    <remote>
      <clear>Delete</clear>
      <!-- NH loggn.de -->
      <yellow>Delete</yellow>
    </remote>
  </MyTV>
  <MyFiles>
    <remote>
      <clear>Delete</clear>
      <zero>Highlight</zero>
      <star>Move</star>
      <hash>Rename</hash>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </MyFiles>
  <MyMusicPlaylist>
    <remote>
      <clear>Delete</clear>
      <zero>Delete</zero>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </MyMusicPlaylist>
  <MyMusicPlaylistEditor>
    <remote>
      <zero>Queue</zero>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </MyMusicPlaylistEditor>
  <MyMusicFiles>
    <remote>
      <zero>Queue</zero>
      <star>Queue</star>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </MyMusicFiles>
  <MyMusicLibrary>
    <remote>
      <zero>Queue</zero>
      <star>Queue</star>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </MyMusicLibrary>
  <FullscreenVideo>
    <remote>
      <zero>Number0</zero>
      <one>Number1</one>
      <two>Number2</two>
      <three>Number3</three>
      <four>Number4</four>
      <five>Number5</five>
      <six>Number6</six>
      <seven>Number7</seven>
      <eight>Number8</eight>
      <nine>Number9</nine>
      <left>StepBack</left>
      <right>StepForward</right>
      <up>ChapterOrBigStepForward</up>
      <down>ChapterOrBigStepBack</down>
      <back>Back</back>
      <menu>OSD</menu>
      <start>OSD</start>
      <select>OSD</select>
      <title>XBMC.ActivateWindowAndFocus(MyPVR, 31,0, 10,0)</title>
      <info>Info</info>
      <guide>XBMC.ActivateWindow(PVROSDGuide)</guide>
      <teletext>XBMC.ActivateWindow(Teletext)</teletext>
      <subtitle>NextSubtitle</subtitle>
      <star>NextSubtitle</star>
      <language>AudioNextLanguage</language>
      <playlist>Playlist</playlist>
      <hash>AudioNextLanguage</hash>
      <pageplus>SkipNext</pageplus>
      <pageminus>SkipPrevious</pageminus>
      <!-- NH loggn.de -->
      <recordedtv>CodecInfo</recordedtv>
      <clear>CodecInfo</clear>
      <playlist>XBMC.ActivateWindow(Teletext)</playlist>
      <subtitle>XBMC.ActivateWindow(Teletext)</subtitle>
      <red>XBMC.ActivateWindow(Teletext)</red>
      <green>AudioNextLanguage</green>
      <yellow>NextSubtitle</yellow>
      <blue>AspectRatio</blue>
    </remote>
  </FullscreenVideo>
  <VideoTimeSeek>
    <remote>
      <select>Select</select>
      <enter>Select</enter>
    </remote>
  </VideoTimeSeek>
  <FullscreenInfo>
    <remote>
      <title>CodecInfo</title>
      <info>Back</info>
      <menu>OSD</menu>
      <!-- NH loggn.de -->
      <start>OSD</start>
    </remote>
  </FullscreenInfo>
  <PlayerControls>
    <remote>
      <menu>Back</menu>
      <!-- NH loggn.de -->
      <start>Back</start>
    </remote>
  </PlayerControls>
  <Visualisation>
    <remote>
      <left>PreviousPreset</left>
      <right>NextPreset</right>
      <up>IncreaseRating</up>
      <down>DecreaseRating</down>
      <back>Back</back>
      <title>CodecInfo</title>
      <select>XBMC.ActivateWindow(VisualisationPresetList)</select>
      <menu>OSD</menu>
      <start>OSD</start>
      <info>Info</info>
      <guide>XBMC.ActivateWindow(PVROSDGuide)</guide>
      <playlist>XBMC.ActivateWindow(PVROSDChannels)</playlist>
      <subtitle>XBMC.ActivateWindow(PVROSDChannels)</subtitle>
      <!-- NH loggn.de -->
      <recordedtv>CodecInfo</recordedtv>
      <clear>CodecInfo</clear>
    </remote>
  </Visualisation>
  <MusicOSD>
    <remote>
      <menu>Back</menu>
      <title>Info</title>
      <info>CodecInfo</info>
      <!-- NH loggn.de -->
      <start>Back</start>
    </remote>
  </MusicOSD>
  <VisualisationSettings>
    <remote>
      <menu>Back</menu>
      <!-- NH loggn.de -->
      <start>Back</start>
    </remote>
  </VisualisationSettings>
  <VisualisationPresetList>
    <remote>
      <menu>Back</menu>
      <!-- NH loggn.de -->
      <start>Back</start>
    </remote>
  </VisualisationPresetList>
  <SlideShow>
    <remote>
      <zero>ZoomNormal</zero>
      <one>ZoomLevel1</one>
      <two>ZoomLevel2</two>
      <three>ZoomLevel3</three>
      <four>ZoomLevel4</four>
      <five>ZoomLevel5</five>
      <six>ZoomLevel6</six>
      <seven>ZoomLevel7</seven>
      <eight>ZoomLevel8</eight>
      <nine>ZoomLevel9</nine>
      <info>CodecInfo</info>
      <skipplus>NextPicture</skipplus>
      <skipminus>PreviousPicture</skipminus>
      <title>Info</title>
      <select>Rotate</select>
    </remote>
  </SlideShow>
  <ScreenCalibration>
    <remote>
      <select>NextCalibration</select>
      <zero>ResetCalibration</zero>
      <display>NextResolution</display>
      <xbox>NextResolution</xbox>
    </remote>
  </ScreenCalibration>
  <GUICalibration>
    <remote>
      <select>NextCalibration</select>
      <zero>ResetCalibration</zero>
    </remote>
  </GUICalibration>
  <VideoOSD>
    <remote>
      <menu>Back</menu>
      <start>Back</start>
    </remote>
  </VideoOSD>
  <VideoMenu>
    <remote>
      <menu>OSD</menu>
      <info>Info</info>
      <title>CodecInfo</title>
      <zero>Number0</zero>
      <one>Number1</one>
      <two>Number2</two>
      <three>Number3</three>
      <four>Number4</four>
      <five>Number5</five>
      <six>Number6</six>
      <seven>Number7</seven>
      <eight>Number8</eight>
      <nine>Number9</nine>
      <play>Select</play>
      <pageplus>SkipNext</pageplus>
      <pageminus>SkipPrevious</pageminus>
      <!-- NH loggn.de -->
      <start>OSD</start>
      <recordedtv>CodecInfo</recordedtv>
      <clear>CodecInfo</clear>
      <playlist>XBMC.ActivateWindow(Teletext)</playlist>
      <subtitle>XBMC.ActivateWindow(Teletext)</subtitle>
      <red>XBMC.ActivateWindow(Teletext)</red>
      <green>AudioNextLanguage</green>
      <yellow>NextSubtitle</yellow>
      <blue>AspectRatio</blue>
    </remote>
  </VideoMenu>
  <OSDVideoSettings>
    <remote>
      <menu>Back</menu>
      <start>Back</start>
    </remote>
  </OSDVideoSettings>
  <OSDAudioSettings>
    <remote>
      <menu>Back</menu>
      <start>Back</start>
    </remote>
  </OSDAudioSettings>
  <VideoBookmarks>
    <remote>
      <menu>Back</menu>
      <start>Back</start>
      <zero>Delete</zero>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </VideoBookmarks>
  <MyVideoLibrary>
    <remote>
      <zero>Queue</zero>
      <clear>Delete</clear>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </MyVideoLibrary>
  <MyVideoFiles>
    <remote>
      <zero>Queue</zero>
      <star>Queue</star>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </MyVideoFiles>
  <MyVideoPlaylist>
    <remote>
      <clear>Delete</clear>
      <zero>Delete</zero>
      <!-- NH loggn.de -->
      <red>Playlist</red>
      <green>Queue</green>
      <yellow>Delete</yellow>
      <blue>ToggleWatched</blue>
    </remote>
  </MyVideoPlaylist>
  <VirtualKeyboard>
    <remote>
      <back>BackSpace</back>
      <star>Shift</star>
      <hash>Symbols</hash>
      <zero>Number0</zero>
      <one>Number1</one>
      <two>Number2</two>
      <three>Number3</three>
      <four>Number4</four>
      <five>Number5</five>
      <six>Number6</six>
      <seven>Number7</seven>
      <eight>Number8</eight>
      <nine>Number9</nine>
      <enter>Enter</enter>
      <pageminus>CursorLeft</pageminus>
      <pageplus>CursorRight</pageplus>
      <!-- NH loggn.de -->
      <back>Close</back>
    </remote>
  </VirtualKeyboard>
  <ContextMenu>
    <remote>
      <title>Back</title>
    </remote>
  </ContextMenu>
  <Scripts>
    <remote>
      <info>Info</info>
    </remote>
  </Scripts>
  <NumericInput>
    <remote>
      <zero>Number0</zero>
      <one>Number1</one>
      <two>Number2</two>
      <three>Number3</three>
      <four>Number4</four>
      <five>Number5</five>
      <six>Number6</six>
      <seven>Number7</seven>
      <eight>Number8</eight>
      <nine>Number9</nine>
      <enter>Enter</enter>
      <back>BackSpace</back>
      <!-- NH loggn.de -->
      <back>Close</back>
    </remote>
  </NumericInput>
  <Weather>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </Weather>
  <TV>
    <remote>
      <red>Red</red>
      <green>Green</green>
      <yellow>Yellow</yellow>
      <blue>Blue</blue>
    </remote>
  </TV>
  <Settings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </Settings>
  <AddonBrowser>
    <remote>
    </remote>
  </AddonBrowser>
  <AddonInformation>
    <remote>
      <back>Close</back>
    </remote>
  </AddonInformation>
  <AddonSettings>
    <remote>
      <back>Close</back>
    </remote>
  </AddonSettings>
  <TextViewer>
    <remote>
      <back>Close</back>
    </remote>
  </TextViewer>
  <MyPicturesSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </MyPicturesSettings>
  <MyProgramsSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </MyProgramsSettings>
  <MyWeatherSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </MyWeatherSettings>
  <MyMusicSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </MyMusicSettings>
  <SystemSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </SystemSettings>
  <MyVideosSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </MyVideosSettings>
  <NetworkSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </NetworkSettings>
  <AppearanceSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </AppearanceSettings>
  <Profiles>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </Profiles>
  <systeminfo>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </systeminfo>
  <shutdownmenu>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </shutdownmenu>
  <submenu>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </submenu>
  <MusicInformation>
    <remote>
      <info>Back</info>
    </remote>
  </MusicInformation>
  <MovieInformation>
    <remote>
      <info>Back</info>
    </remote>
  </MovieInformation>
  <LockSettings>
    <remote>
      <menu>Back</menu>
      <!-- NH loggn.de -->
      <start>Back</start>
    </remote>
  </LockSettings>
  <ProfileSettings>
    <remote>
      <menu>Back</menu>
      <!-- NH loggn.de -->
      <start>Back</start>
    </remote>
  </ProfileSettings>
  <PictureInfo>
    <remote>
      <skipplus>NextPicture</skipplus>
      <skipminus>PreviousPicture</skipminus>
      <info>Back</info>
    </remote>
  </PictureInfo>
  <Teletext>
    <remote>
      <zero>number0</zero>
      <one>number1</one>
      <two>number2</two>
      <three>number3</three>
      <four>number4</four>
      <five>number5</five>
      <six>number6</six>
      <seven>number7</seven>
      <eight>number8</eight>
      <nine>number9</nine>
      <red>Red</red>
      <green>Green</green>
      <yellow>Yellow</yellow>
      <blue>Blue</blue>
      <info>Info</info>
      <menu>Back</menu>
      <start>Back</start>
      <teletext>Back</teletext>
    </remote>
  </Teletext>
  <Favourites>
    <remote>
      <back>Close</back>
    </remote>
  </Favourites>
  <FullscreenLiveTV>
    <remote>
      <left>StepBack</left>
      <right>StepForward</right>
      <pageplus>XBMC.ActivateWindow(PVROSDChannels)</pageplus>
      <pageminus>XBMC.ActivateWindow(PVROSDChannels)</pageminus>
      <!-- NH loggn.de -->
      <left>ChannelDown</left>
      <right>ChannelUp</right>
      <pageplus>ChannelUp</pageplus>
      <pageminus>ChannelDown</pageminus>
      <up>XBMC.ActivateWindow(PVROSDChannels)</up>
      <down>XBMC.ActivateWindow(PVROSDChannels)</down>
      <recordedtv>CodecInfo</recordedtv>
      <clear>CodecInfo</clear>
      <playlist>XBMC.ActivateWindow(Teletext)</playlist>
      <subtitle>XBMC.ActivateWindow(Teletext)</subtitle>
      <red>XBMC.ActivateWindow(Teletext)</red>
      <green>AudioNextLanguage</green>
      <yellow>NextSubtitle</yellow>
      <blue>AspectRatio</blue>
    </remote>
  </FullscreenLiveTV>
  <PVROSDChannels>
    <remote>
      <back>Close</back>
      <menu>Close</menu>
      <start>Close</start>
      <playlist>Close</playlist>
      <!-- Channel +/- shift up/down in OSDChannels -->
      <pageplus>Up</pageplus>
      <pageminus>Down</pageminus>
      <!-- left/right change ChannelGroups -->
      <left>PreviousChannelGroup</left>
      <right>NextChannelGroup</right>
      <!-- NH loggn.de -->
      <left>PageUp</left>
      <right>PageDown</right>
      <subtitle>Close</subtitle>
    </remote>
  </PVROSDChannels>
  <PVROSDGuide>
    <remote>
      <back>Close</back>
      <menu>Close</menu>
      <start>Close</start>
      <guide>Close</guide>
    </remote>
  </PVROSDGuide>
  <PVROSDDirector>
    <remote>
      <back>Close</back>
      <menu>Close</menu>
      <!-- NH loggn.de -->
      <start>Close</start>
    </remote>
  </PVROSDDirector>
  <PVROSDCutter>
    <remote>
      <back>Close</back>
      <menu>Close</menu>
      <!-- NH loggn.de -->
      <start>Close</start>
    </remote>
  </PVROSDCutter>
  <MyTVSettings>
    <remote>
      <back>PreviousMenu</back>
    </remote>
  </MyTVSettings>
  <AddonSettings>
    <remote>
      <clear>Delete</clear>
      <!-- NH loggn.de -->
      <yellow>Delete</yellow>
    </remote>
  </AddonSettings>
  <MyPVR>
    <remote>
      <title>Fullscreen</title>
    </remote>
  </MyPVR>
</keymap>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

678

679

680

<!--

Logitech Harmony Touch mit Profil "Microsoft Windows Media Center SE"

loggn.de - Nico Hartung

https://www.loggn.de/openelec-logitech-harmony-touch-mit-kodi-xbmc-keymaps/

Default Lircmap.xml: https://github.com/xbmc/xbmc/blob/master/system/Lircmap.xml

Default remote.xml: https://github.com/xbmc/xbmc/blob/master/system/keymaps/remote.xml

Wiki: https://kodi.wiki/view/Keymap

Source: https://forum.kodi.tv/showthread.php?tid=188542

-->

<?xml version="1.0" encoding="UTF-8"?>

<pause>Pause</pause>

<forward>FastForward</forward>

<reverse>Rewind</reverse>

<right>Right</right>

<select>Select</select>

<enter>FullScreen</enter>

<pageplus>PageUp</pageplus>

<pageminus>PageDown</pageminus>

<menu>ContextMenu</menu>

<title>XBMC.ActivateWindowAndFocus(MyPVR, 31,0, 10,0)</title>

<skipplus>SkipNext</skipplus>

<skipminus>SkipPrevious</skipminus>

<display>FullScreen</display>

<start>PreviousMenu</start>

<record>Record</record>

<volumeplus>VolumeUp</volumeplus>

<volumeminus>VolumeDown</volumeminus>

<power>XBMC.ShutDown()</power>

<myvideo>XBMC.ActivateWindow(MyVideos)</myvideo>

<mymusic>XBMC.ActivateWindow(MyMusic)</mymusic>

<mypictures>XBMC.ActivateWindow(MyPictures)</mypictures>

<mytv>XBMC.ActivateWindow(MyPVR)</mytv>

<guide>XBMC.ActivateWindowAndFocus(MyPVR, 31,0, 10,0)</guide>

<livetv>XBMC.ActivateWindowAndFocus(MyPVR, 32,0, 11,0)</livetv>

<liveradio>XBMC.ActivateWindowAndFocus(MyPVR, 33,0, 12,0)</liveradio>

<recordedtv>XBMC.ActivateWindowAndFocus(MyPVR, 34,0, 13,0)</recordedtv>

<epgsearch>XBMC.ActivateWindowAndFocus(MyPVR, 35,0, 14,0)</epgsearch>

<red>XBMC.ActivateWindow(MyPVR)</red>

<green>XBMC.ActivateWindow(MyVideos)</green>

<yellow>XBMC.ActivateWindow(MyMusic)</yellow>

<blue>XBMC.ActivateWindow(MyPictures)</blue>

<zero>Number0</zero>

<one>Number1</one>

<two>JumpSMS2</two>

<three>JumpSMS3</three>

<four>JumpSMS4</four>

<five>JumpSMS5</five>

<six>JumpSMS6</six>

<seven>JumpSMS7</seven>

<eight>JumpSMS8</eight>

<nine>JumpSMS9</nine>

<myvideo>ActivateWindow(video)</myvideo>

<mymusic>ActivateWindow(music)</mymusic>

<mypictures>ActivateWindow(pictures)</mypictures>

<title>ActivateWindow(tvguide)</title>

<guide>ActivateWindow(tvguide)</guide>

<mytv>PlayPvr</mytv>

<livetv>ActivateWindow(tvchannels)</livetv>

<liveradio>ActivateWindow(radiochannels)</liveradio>

<recordedtv>ActivateWindow(tvrecordings)</recordedtv>

<epgsearch>ActivateWindow(pvrguidesearch)</epgsearch>

<red>ActivateWindow(tvchannels)</red>

<green>ActivateWindow(video)</green>

<yellow>ActivateWindow(music)</yellow>

<blue>ActivateWindow(pictures)</blue>

<start>ContextMenu</start>

<playlist>Playlist</playlist>

<subtitle>Playlist</subtitle>

<pageplus>PageDown</pageplus>

<pageminus>PageUp</pageminus>

</remote>

</global>

<Home>

<info>XBMC.ActivateWindow(SystemInfo)</info>

<clear>XBMC.ActivateWindow(Weather)</clear>

<hash>XBMC.ActivateWindow(Settings)</hash>

</remote>

</Home>

<MyTV>

<clear>Delete</clear>

<yellow>Delete</yellow>

</remote>

</MyTV>

<clear>Delete</clear>

<zero>Highlight</zero>

<hash>Rename</hash>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</MyFiles>

<clear>Delete</clear>

<zero>Delete</zero>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</MyMusicPlaylist>

<zero>Queue</zero>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</MyMusicPlaylistEditor>

<zero>Queue</zero>

<star>Queue</star>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</MyMusicFiles>

<zero>Queue</zero>

<star>Queue</star>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</MyMusicLibrary>

<zero>Number0</zero>

<one>Number1</one>

<two>Number2</two>

<three>Number3</three>

<four>Number4</four>

<five>Number5</five>

<six>Number6</six>

<seven>Number7</seven>

<eight>Number8</eight>

<nine>Number9</nine>

<left>StepBack</left>

<right>StepForward</right>

<up>ChapterOrBigStepForward</up>

<down>ChapterOrBigStepBack</down>

<title>XBMC.ActivateWindowAndFocus(MyPVR, 31,0, 10,0)</title>

<guide>XBMC.ActivateWindow(PVROSDGuide)</guide>

<teletext>XBMC.ActivateWindow(Teletext)</teletext>

<subtitle>NextSubtitle</subtitle>

<star>NextSubtitle</star>

<language>AudioNextLanguage</language>

<playlist>Playlist</playlist>

<hash>AudioNextLanguage</hash>

<pageplus>SkipNext</pageplus>

<pageminus>SkipPrevious</pageminus>

<recordedtv>CodecInfo</recordedtv>

<clear>CodecInfo</clear>

<playlist>XBMC.ActivateWindow(Teletext)</playlist>

<subtitle>XBMC.ActivateWindow(Teletext)</subtitle>

<red>XBMC.ActivateWindow(Teletext)</red>

<green>AudioNextLanguage</green>

<yellow>NextSubtitle</yellow>

<blue>AspectRatio</blue>

</remote>

</FullscreenVideo>

<select>Select</select>

<enter>Select</enter>

</remote>

</VideoTimeSeek>

<title>CodecInfo</title>

</remote>

</FullscreenInfo>

</remote>

</PlayerControls>

<left>PreviousPreset</left>

<right>NextPreset</right>

<up>IncreaseRating</up>

<down>DecreaseRating</down>

<title>CodecInfo</title>

<select>XBMC.ActivateWindow(VisualisationPresetList)</select>

<guide>XBMC.ActivateWindow(PVROSDGuide)</guide>

<playlist>XBMC.ActivateWindow(PVROSDChannels)</playlist>

<subtitle>XBMC.ActivateWindow(PVROSDChannels)</subtitle>

<recordedtv>CodecInfo</recordedtv>

<clear>CodecInfo</clear>

</remote>

</Visualisation>

<info>CodecInfo</info>

</remote>

</MusicOSD>

</remote>

</VisualisationSettings>

</remote>

</VisualisationPresetList>

<zero>ZoomNormal</zero>

<one>ZoomLevel1</one>

<two>ZoomLevel2</two>

<three>ZoomLevel3</three>

<four>ZoomLevel4</four>

<five>ZoomLevel5</five>

<six>ZoomLevel6</six>

<seven>ZoomLevel7</seven>

<eight>ZoomLevel8</eight>

<nine>ZoomLevel9</nine>

<info>CodecInfo</info>

<skipplus>NextPicture</skipplus>

<skipminus>PreviousPicture</skipminus>

<select>Rotate</select>

</remote>

</SlideShow>

<select>NextCalibration</select>

<zero>ResetCalibration</zero>

<display>NextResolution</display>

<xbox>NextResolution</xbox>

</remote>

</ScreenCalibration>

<select>NextCalibration</select>

<zero>ResetCalibration</zero>

</remote>

</GUICalibration>

</remote>

</VideoOSD>

<title>CodecInfo</title>

<zero>Number0</zero>

<one>Number1</one>

<two>Number2</two>

<three>Number3</three>

<four>Number4</four>

<five>Number5</five>

<six>Number6</six>

<seven>Number7</seven>

<eight>Number8</eight>

<nine>Number9</nine>

<play>Select</play>

<pageplus>SkipNext</pageplus>

<pageminus>SkipPrevious</pageminus>

<recordedtv>CodecInfo</recordedtv>

<clear>CodecInfo</clear>

<playlist>XBMC.ActivateWindow(Teletext)</playlist>

<subtitle>XBMC.ActivateWindow(Teletext)</subtitle>

<red>XBMC.ActivateWindow(Teletext)</red>

<green>AudioNextLanguage</green>

<yellow>NextSubtitle</yellow>

<blue>AspectRatio</blue>

</remote>

</VideoMenu>

</remote>

</OSDVideoSettings>

</remote>

</OSDAudioSettings>

<zero>Delete</zero>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</VideoBookmarks>

<zero>Queue</zero>

<clear>Delete</clear>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</MyVideoLibrary>

<zero>Queue</zero>

<star>Queue</star>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</MyVideoFiles>

<clear>Delete</clear>

<zero>Delete</zero>

<red>Playlist</red>

<green>Queue</green>

<yellow>Delete</yellow>

<blue>ToggleWatched</blue>

</remote>

</MyVideoPlaylist>

<back>BackSpace</back>

<star>Shift</star>

<hash>Symbols</hash>

<zero>Number0</zero>

<one>Number1</one>

<two>Number2</two>

<three>Number3</three>

<four>Number4</four>

<five>Number5</five>

<six>Number6</six>

<seven>Number7</seven>

<eight>Number8</eight>

<nine>Number9</nine>

<enter>Enter</enter>

<pageminus>CursorLeft</pageminus>

<pageplus>CursorRight</pageplus>

<back>Close</back>

</remote>

</VirtualKeyboard>

</remote>

</ContextMenu>

</remote>

</Scripts>

<zero>Number0</zero>

<one>Number1</one>

<two>Number2</two>

<three>Number3</three>

<four>Number4</four>

<five>Number5</five>

<six>Number6</six>

<seven>Number7</seven>

<eight>Number8</eight>

<nine>Number9</nine>

<enter>Enter</enter>

<back>BackSpace</back>

<back>Close</back>

</remote>

</NumericInput>

<back>PreviousMenu</back>

</remote>

</Weather>

<TV>

<green>Green</green>

<yellow>Yellow</yellow>

</remote>

</TV>

<back>PreviousMenu</back>

</remote>

</Settings>

</remote>

</AddonBrowser>

<back>Close</back>

</remote>

</AddonInformation>

<back>Close</back>

</remote>

</AddonSettings>

<back>Close</back>

</remote>

</TextViewer>

<back>PreviousMenu</back>

</remote>

</MyPicturesSettings>

<back>PreviousMenu</back>

</remote>

</MyProgramsSettings>

<back>PreviousMenu</back>

</remote>

</MyWeatherSettings>

<back>PreviousMenu</back>

</remote>

</MyMusicSettings>

<back>PreviousMenu</back>

</remote>

</SystemSettings>

<back>PreviousMenu</back>

</remote>

</MyVideosSettings>

<back>PreviousMenu</back>

</remote>

</NetworkSettings>

<back>PreviousMenu</back>

</remote>

</AppearanceSettings>

<back>PreviousMenu</back>

</remote>

</Profiles>

<back>PreviousMenu</back>

</remote>

</systeminfo>

<back>PreviousMenu</back>

</remote>

</shutdownmenu>

<back>PreviousMenu</back>

</remote>

</submenu>

</remote>

</MusicInformation>

</remote>

</MovieInformation>

</remote>

</LockSettings>

</remote>

</ProfileSettings>

<skipplus>NextPicture</skipplus>

<skipminus>PreviousPicture</skipminus>

</remote>

</PictureInfo>

<zero>number0</zero>

<one>number1</one>

<two>number2</two>

<three>number3</three>

<four>number4</four>

<five>number5</five>

<six>number6</six>

<seven>number7</seven>

<eight>number8</eight>

<nine>number9</nine>

<green>Green</green>

<yellow>Yellow</yellow>

</remote>

</Teletext>

<back>Close</back>

</remote>

</Favourites>

<left>StepBack</left>

<right>StepForward</right>

<pageplus>XBMC.ActivateWindow(PVROSDChannels)</pageplus>

<pageminus>XBMC.ActivateWindow(PVROSDChannels)</pageminus>

<left>ChannelDown</left>

<right>ChannelUp</right>

<pageplus>ChannelUp</pageplus>

<pageminus>ChannelDown</pageminus>

<up>XBMC.ActivateWindow(PVROSDChannels)</up>

<down>XBMC.ActivateWindow(PVROSDChannels)</down>

<recordedtv>CodecInfo</recordedtv>

<clear>CodecInfo</clear>

<playlist>XBMC.ActivateWindow(Teletext)</playlist>

<subtitle>XBMC.ActivateWindow(Teletext)</subtitle>

<red>XBMC.ActivateWindow(Teletext)</red>

<green>AudioNextLanguage</green>

<yellow>NextSubtitle</yellow>

<blue>AspectRatio</blue>

</remote>

</FullscreenLiveTV>

<back>Close</back>

<menu>Close</menu>

<start>Close</start>

<playlist>Close</playlist>

<left>PreviousChannelGroup</left>

<right>NextChannelGroup</right>

<left>PageUp</left>

<right>PageDown</right>

<subtitle>Close</subtitle>

</remote>

</PVROSDChannels>

<back>Close</back>

<menu>Close</menu>

<start>Close</start>

<guide>Close</guide>

</remote>

</PVROSDGuide>

<back>Close</back>

<menu>Close</menu>

<start>Close</start>

</remote>

</PVROSDDirector>

<back>Close</back>

<menu>Close</menu>

<start>Close</start>

</remote>

</PVROSDCutter>

<back>PreviousMenu</back>

</remote>

</MyTVSettings>

<clear>Delete</clear>

<yellow>Delete</yellow>

</remote>

</AddonSettings>

<MyPVR>

<title>Fullscreen</title>

</remote>

</MyPVR>

</keymap>

Hier könnt ihr meine remote.xml für Kodi / XBMC direkt downloaden. Früher habe ich euch immer noch eine zusätzliche Lircmap.xml dazugegeben – diese braucht ihr nun nicht mehr, da OpenELEC – Logitech Harmony Touch mit Kodi / XBMC – Keymaps weiterlesen

Raspberry Pi – RaspBMC – RC6 IR-Empfänger und XBMC Lircmap.xml

In einem meiner letzten Artikel habe ich bereits angedeutet, dass ich mittlerweile einen Raspberry Pi als Media-PC im Schlafzimmer produktiv im Einsatz habe.

Natürlich sollte sich der Raspberry Pi mit einer Logitech Harmony steuern lassen – typisch. 😉 Auf dem Raspberry Pi lief zum Zeitpunkt der HowTo RaspBMC RC3 mit dem Linux-Kernel …

uname -r
3.6.11

1 2	uname -r 3.6.11

… und der LIRC Version

ircd -v
lircd 0.9.1-git

1 2	ircd -v lircd 0.9.1-git

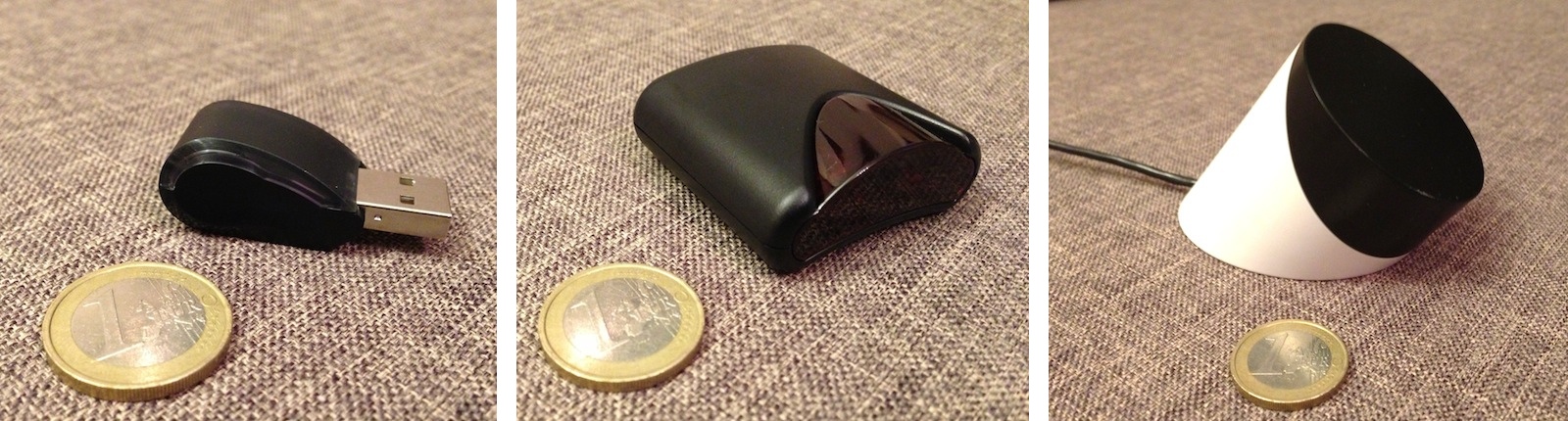

Welche RC6 Infrarot-Empfänger funktionieren mit dem Raspberry Pi?

Da ich recht gute Kontakte zum CoHauS Shop habe, habe ich mir von Tino mal 3 beliebte RC6 IR-Empfänger schicken lassen – IR605Q (links), IR606Q (mitte) und OVU411000 (rechts).

Alle 3 Empfänger werden von RaspBMC anstandslos, mit dem Modul mceusb, erkannt.

RC6 Infrarot Empfänger, Modell IR605Q

cat /proc/bus/input/devices
I: Bus=0003 Vendor=147a Product=e03e Version=1101
N: Name="Media Center Ed. eHome Infrared Remote Transceiver (147a:e03e)"
...
N: Name="MCE IR Keyboard/Mouse (mceusb)"

cat /proc/bus/input/devices

I: Bus=0003 Vendor=147a Product=e03e Version=1101

N: Name="Media Center Ed. eHome Infrared Remote Transceiver (147a:e03e)"

...

N: Name="MCE IR Keyboard/Mouse (mceusb)"

RC6 Infrarot Empfänger, Modell IR606Q

cat /proc/bus/input/devices
I: Bus=0003 Vendor=147a Product=e042 Version=1101
N: Name="Media Center Ed. eHome Infrared Remote Transceiver (147a:e042)"
...
N: Name="MCE IR Keyboard/Mouse (mceusb)"

cat /proc/bus/input/devices

I: Bus=0003 Vendor=147a Product=e042 Version=1101

N: Name="Media Center Ed. eHome Infrared Remote Transceiver (147a:e042)"

...

N: Name="MCE IR Keyboard/Mouse (mceusb)"

Philips RC6 Infrarot Empfänger, Modell OVU411000

cat /proc/bus/input/devices
I: Bus=0003 Vendor=0471 Product=060d Version=0101
N: Name="Media Center Ed. eHome Infrared Remote Transceiver (0471:060d)"
...
N: Name="MCE IR Keyboard/Mouse (mceusb)"

cat /proc/bus/input/devices

I: Bus=0003 Vendor=0471 Product=060d Version=0101

N: Name="Media Center Ed. eHome Infrared Remote Transceiver (0471:060d)"

...

N: Name="MCE IR Keyboard/Mouse (mceusb)"

Die Logitech Harmony funktioniert nun teilweise schon in XBMC, nicht alles, aber einiges – darum geht es hier jetzt auch noch weiter. 😉

Werden Tasten der Logitech Harmony (200) mit Windows Media Center SE Profil erkannt?

Ja, per SSH auf den Raspberry Pi einloggen, irw eingeben und fröhlich Raspberry Pi – RaspBMC – RC6 IR-Empfänger und XBMC Lircmap.xml weiterlesen

Arch Linux – LIRC Konfiguration mit MCE RC6 IR und Lircmap.xml für XBMC (Logitech Harmony)

Vor kurzem habe ich bereits drei HowTo’s für Ubuntu veröffentlicht.

HTPC – Media Center – Logitech Harmony reagiert träge unter Windows und Linux
Linux – LIRC – XBMC mit Logitech Harmony steuern – Lircmap.xml und Keyboard.xml
Ubuntu (alle Versionen) – LIRC Konfiguration mit MCE RC6 IR605Q (147a:e03e) und Logitech Harmony

Nun möchte ich den MCE RC6 Infrarot Empfänger – Modell IR605Q aber mit dem aktuellsten Arch Linux betreiben (Stand: 03.02.2012).

EDIT: Einen Gutscheincode für den RC6 Infrarot Empfänger – Modell IR605Q gibt es hier – gültig bis 7. Februar 2012!

lsusb | grep -i formosa
Bus 003 Dev 003: ID 147a:e03e Formosa Industrial Computing, Inc. Infrared Receiver [IR605A/Q]

1 2	lsusb \| grep -i formosa Bus 003 Dev 003: ID 147a:e03e Formosa Industrial Computing, Inc. Infrared Receiver [IR605A/Q]

uname -r
3.2.2-1-ARCH

1 2	uname -r 3.2.2-1-ARCH

lircd -v
lircd 0.9.0

1 2	lircd -v lircd 0.9.0

Diese HowTo funktioniert auch für Ubuntu 11.10 (Danke Fab) und sollte dann auch für 12.04 funktionieren!

ACHTUNG: In der Harmony muss das richtige MCE Profil (Windows Media Center SE) ausgewählt sein – HowTo – Danke Fab.

UPDATE_2013-01-18: Mit der systemd Umstellung hat sich auch die LIRC Konfiguration ein klein wenig geändert – hier mehr.

Das Besondere an dieser LIRC-Konfiguration ist, dass es einige Änderungen in der Kernel- und LIRC-Version gab – der aktuelle Kernel erkennt den MCE-IR-Empfänger bereits ohne LIRC! Daher ist in der hardware.conf REMOTE_DRIVER und REMOTE_MODULES leer …

vi /etc/lirc/hardware.conf

1	vi /etc/lirc/hardware.conf

# /etc/lirc/hardware.conf
#
#Chosen Remote Control
REMOTE="Windows Media Center Transceivers/Remotes (all)"
REMOTE_MODULES=""
REMOTE_DRIVER=""
REMOTE_DEVICE="/dev/lirc0"
REMOTE_SOCKET=""
REMOTE_LIRCD_CONF="mceusb/lircd.conf.mceusb"
REMOTE_LIRCD_ARGS=""

#Chosen IR Transmitter
TRANSMITTER="None"
TRANSMITTER_MODULES=""
TRANSMITTER_DRIVER=""
TRANSMITTER_DEVICE=""
TRANSMITTER_SOCKET=""
TRANSMITTER_LIRCD_CONF=""
TRANSMITTER_LIRCD_ARGS=""

#Enable lircd
START_LIRCD="true"

#Don't start lircmd even if there seems to be a good config file
#START_LIRCMD="false"

#Try to load appropriate kernel modules
LOAD_MODULES="true"

# Default configuration files for your hardware if any
LIRCMD_CONF=""

#Forcing noninteractive reconfiguration
#If lirc is to be reconfigured by an external application
#that doesn't have a debconf frontend available, the noninteractive
#frontend can be invoked and set to parse REMOTE and TRANSMITTER
#It will then populate all other variables without any user input
#If you would like to configure lirc via standard methods, be sure
#to leave this set to "false"
FORCE_NONINTERACTIVE_RECONFIGURATION="false"
START_LIRCMD=""

# /etc/lirc/hardware.conf

#Chosen Remote Control

REMOTE="Windows Media Center Transceivers/Remotes (all)"

REMOTE_MODULES=""

REMOTE_DRIVER=""

REMOTE_DEVICE="/dev/lirc0"

REMOTE_SOCKET=""

REMOTE_LIRCD_CONF="mceusb/lircd.conf.mceusb"

REMOTE_LIRCD_ARGS=""

#Chosen IR Transmitter

TRANSMITTER="None"

TRANSMITTER_MODULES=""

TRANSMITTER_DRIVER=""

TRANSMITTER_DEVICE=""

TRANSMITTER_SOCKET=""

TRANSMITTER_LIRCD_CONF=""

TRANSMITTER_LIRCD_ARGS=""

#Enable lircd

START_LIRCD="true"

#Don't start lircmd even if there seems to be a good config file

#START_LIRCMD="false"

#Try to load appropriate kernel modules

LOAD_MODULES="true"

# Default configuration files for your hardware if any

LIRCMD_CONF=""

#Forcing noninteractive reconfiguration

#If lirc is to be reconfigured by an external application

#that doesn't have a debconf frontend available, the noninteractive

#frontend can be invoked and set to parse REMOTE and TRANSMITTER

#It will then populate all other variables without any user input

#If you would like to configure lirc via standard methods, be sure

#to leave this set to "false"

FORCE_NONINTERACTIVE_RECONFIGURATION="false"

START_LIRCMD=""

… und hier noch die dazugehörige lircd.conf.

vi /etc/lirc/lircd.conf

1	vi /etc/lirc/lircd.conf

#This configuration has been automatically generated via
#the Ubuntu LIRC package maintainer scripts.
#
#It includes the default configuration for the remote and/or
#transmitter that you have selected during package installation.
#
#Feel free to add any custom remotes to the configuration
#via additional include directives or below the existing
#Ubuntu include directives from your selected remote and/or
#transmitter.

#Configuration for the Windows Media Center Transceivers/Remotes (all) remote:
include "/usr/share/lirc/remotes/mceusb/lircd.conf.mceusb"

#This configuration has been automatically generated via

#the Ubuntu LIRC package maintainer scripts.

#It includes the default configuration for the remote and/or

#transmitter that you have selected during package installation.

#Feel free to add any custom remotes to the configuration

#via additional include directives or below the existing

#Ubuntu include directives from your selected remote and/or

#transmitter.

#Configuration for the Windows Media Center Transceivers/Remotes (all) remote:

include "/usr/share/lirc/remotes/mceusb/lircd.conf.mceusb"

BESONDERHEIT: Damit nicht der Kernel die Eingaben der Fernbedienung verarbeitet, sondern LIRC, muss noch ein zusätzlicher Befehl beim Starten ausgeführt werden. Diesen packen wir am Besten in die rc.local.

Arch Linux – LIRC Konfiguration mit MCE RC6 IR und Lircmap.xml für XBMC (Logitech Harmony) weiterlesen

Linux – LIRC – XBMC mit Logitech Harmony steuern – Lircmap.xml und Keyboard.xml

Nach der ersten HowTo, wo ich beschrieben habe, wie man den IR605Q MCE RC6 IR-Empfänger mit LIRC konfiguriert, folgt nun, wie versprochen, die Lircmap.xml und Keyboard.xml für XBMC. Mit der Default-Konfiguration von XBMC läuft die Harmony (Profil: Windows Media Center SE) zwar auch, aber nicht alle Tasten funktionieren so wie sie sollen. Die Stop-Taste beispielsweise spult vor, die Play-Taste stoppt, die Lautstärke lässt sich über die Harmony nicht regulieren, etc. pp..

UPDATE/EDIT: So wählt ihr das richtige MCE Profil (Windows Media Center SE) für eure Harmony – HowTo – Danke Fab.

Das ändern wir mit unserer Lircmap.xml und Keyboard.xml für XBMC.

~/.xbmc/userdata/Lircmap.xml – Die Datei Lircmap.xml stellt das „Bindeglied“ zwischen der lircd.conf von Lirc und der Keymap.xml von XBMC dar.

~/.xbmc/userdata/keymaps/Keymap.xml / Keyboard.xml – XBMC führt die in der Keymap.xml definierten Aktionen, die den entsprechenden „XBMC-Tasten“ zugeordnet sind, aus. Grundsätzlich ist der Name der XML Datei in ~/.xbmc/userdata/keymaps egal, es zählt eigentlich nur was am Ende in der Datei drin steht. Es hat sich aber irgendwie eingebürgert von der „Keymap.xml“ zu reden, wenn es um die Steuerdatei für die Bedienung von XBMC mit einer Fernbedienung geht.

Quelle: xbmcwiki.ztreambox.org – Lircmap.xml und Keymap.xml

~/.xbmc/userdata/Lircmap.xml

UPDATE_2013-01-09: Mit LIRC 0.9.0 (lircd -v) haben sich die Namen der Tasten verändert, einfach die Lircmap.xml von hier nehmen. (Bsp.: Power zu KEY_POWER)

<!-- This file contains the mapping of LIRC keys to XBMC keys used in Keymap.xml  -->
<!--                                                                              -->
<!-- How to add remotes                                                           -->
<!-- <remote device="name_Lirc_calls_the_remote">                                 -->
<!--                                                                              -->
<!-- For the commands the layout following layout is used                         -->
<!-- <XBMC_COMMAND>LircButtonName</XBMC_COMMAND>                                  -->
<!--                                                                              -->
<!-- For a list of XBMC_COMMAND's check out the <remote> sections of keymap.xml   -->
<!--                                                                              -->
<!--                              Logitech Harmony                                -->
<!--                          loggn.de - Nico Hartung                             -->
<!--                        https://www.loggn.de/linux-ubuntu-lirc-xbmc-mit-logitech-harmony-steuern-lircmap-xml-und-keyboard-xml/                           -->
<!--                                                                              -->
<lircmap>
    <remote device="mceusb">
        <!-- no Display -->
        <power>Power</power>
        <teletext>Teletext</teletext>
        <menu>DVD</menu>
        <back>Back</back>
        <info>More</info>
        <guide>Guide</guide>
        <red>Red</red>
        <green>Green</green>
        <yellow>Yellow</yellow>
        <blue>Blue</blue>
        <left>Left</left>
        <right>Right</right>
        <up>Up</up>
        <down>Down</down>
        <select>OK</select>
        <volumeplus>VolUp</volumeplus>
        <volumeminus>VolDown</volumeminus>
        <pageplus>ChanUp</pageplus>
        <pageminus>ChanDown</pageminus>
        <mute>Mute</mute>
        <play>Play</play>
        <pause>Pause</pause>
        <stop>Stop</stop>
        <forward>Forward</forward>
        <reverse>Rewind</reverse>
        <skipplus>Skip</skipplus>
        <skipminus>Replay</skipminus>
        <record>Record</record>
        <one>One</one>
        <two>Two</two>
        <three>Three</three>
        <four>Four</four>
        <five>Five</five>
        <six>Six</six>
        <seven>Seven</seven>
        <eight>Eight</eight>
        <nine>Nine</nine>
        <zero>Zero</zero>
        <clear>Clear</clear>
        <enter>Enter</enter>
        <!-- with Display -->
        <display>Aspect</display>
        <start>Home</start>
        <myvideo>Videos</myvideo>
        <mymusic>Music</mymusic>
        <mypictures>Pictures</mypictures>
        <mytv>TV</mytv>
        <!-- old versions of harmony -->
        <star>Star</star>
        <hash>Hash</hash>
    </remote>
</lircmap>

<power>Power</power>

<teletext>Teletext</teletext>

<guide>Guide</guide>

<green>Green</green>

<yellow>Yellow</yellow>

<right>Right</right>

<volumeplus>VolUp</volumeplus>

<volumeminus>VolDown</volumeminus>

<pageplus>ChanUp</pageplus>

<pageminus>ChanDown</pageminus>

<pause>Pause</pause>

<forward>Forward</forward>

<reverse>Rewind</reverse>

<skipminus>Replay</skipminus>

<record>Record</record>

<three>Three</three>

<seven>Seven</seven>

<eight>Eight</eight>

<clear>Clear</clear>

<enter>Enter</enter>

<display>Aspect</display>

<myvideo>Videos</myvideo>

<mymusic>Music</mymusic>

<mypictures>Pictures</mypictures>

</remote>

</lircmap>

~/.xbmc/userdata/keymaps/Keyboard.xml Linux – LIRC – XBMC mit Logitech Harmony steuern – Lircmap.xml und Keyboard.xml weiterlesen
